StackMax 2
*No Longer In Production

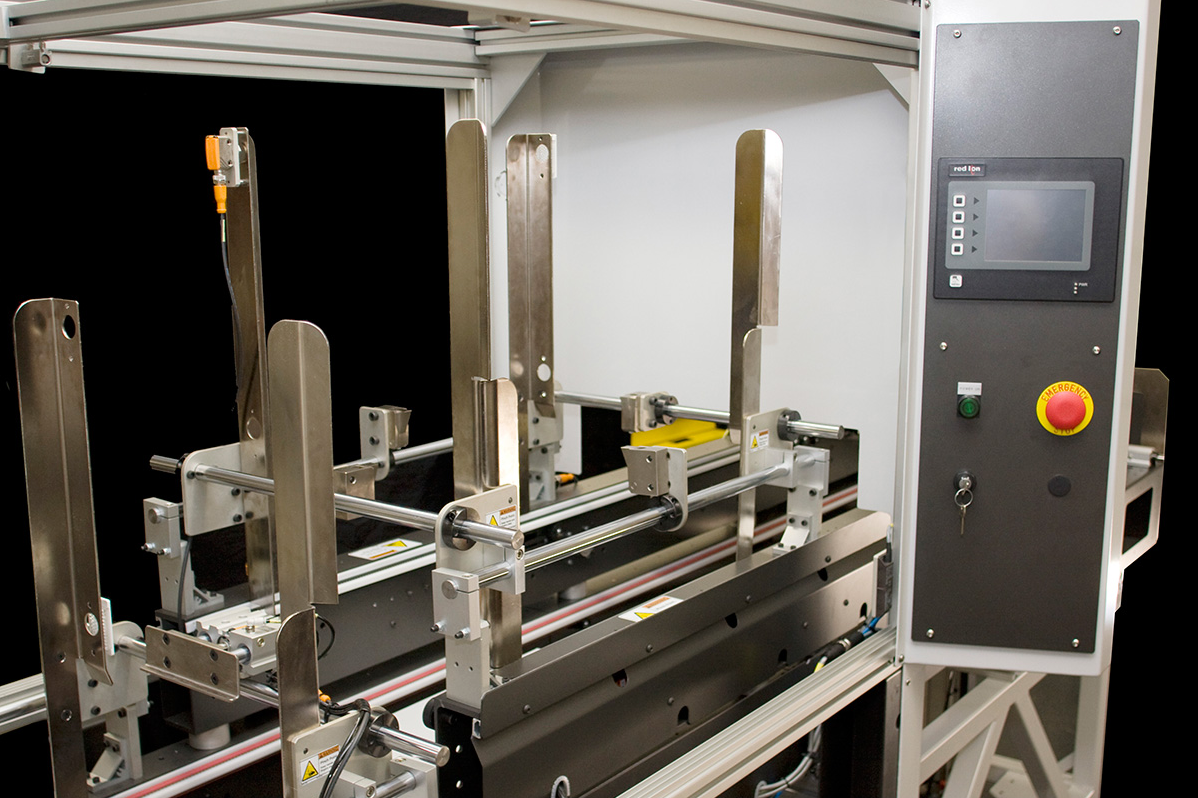

The StackMax 2 is a high performance, low cost inline tray stacking solution. This tray stacker features a dual level conveyor to minimize idle time while cycling trays. The StackMax 2 is fully and easily adjustable to accommodate multiple tray sizes no matter how big or small. Designed and tested for 24/7 operation our StackMax 2 tray stacker solution is ready to handle your production line’s needs.
Features
Allen Bradley MicroLogix 1400 PLC Control.
Communications bridge from MicroLogix to ControlLogix PLC via built in Ethernet switch or Red Lion OIT.
Control solution allows the work-cell to be controlled in “stand-alone” mode.
Ethernet interface to ControlLogix PLC platform for status / control functions.
Rugged welded steel machine frame.
Rugged industrial quality construction and guarding.
Modular design allows machine operator side to change with minimal changeover time. Allows “back-to-back” installation of handling units.
Through beam tray sensors are utilized throughout where practical.
Programmable stack / de-stack lift axes – Position and velocity controlled via OIT menu settings.
Programmable tray pitch selectable via OIT parameter entry.
Advanced queue for minimizing tray change out time.
Axes STOP and continue on reset feature on ESTOP condition (within limits).
PLC solution can be used as remote I/O when used with Ethernet switch or can be operated as a stand alone cell as quoted.
Manual mode and comprehensive I/O screens via touch screen OIT.
Adjustable to accommodate various tray sizes.
Programmable axis that can do either FULL or EMPTY trays (without spilling parts during ESTOP condition).
